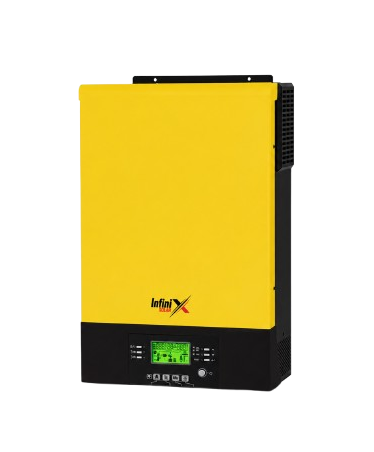

EMPIRE V III TWIN 6 kW

A versatile 6 kW single-phase inverter engineered for grid-tie, off-grid and hybrid operation. It combines 7000 W maximum PV input, smart dual-output load management, high-current solar charging, Wi-Fi monitoring and scalable parallel operation.

6 kW Single Phase 7000 W PV 48V Battery

Enquire Now Preview Download

Official Empire V III Twin 6 kW datasheet · PDF

Dual Output Built-in Wi-Fi BMS Communication Up to 9 Units Parallel

Technical Data

Key specifications

Rated Output Power 6000 W

Maximum PV Input 7000 W

Maximum DC Voltage 500 VDC

MPPT Voltage Range 120–430 VDC

PV Start-up Voltage 120 VDC

Maximum PV Input Current 27 A

AC Output Voltage 220 / 230 / 240 VAC

Nominal Output Current 26 A

Battery Voltage 48 VDC

Maximum Charging Current 120 A

Grid-Tie Conversion Efficiency 95%

Parallel Capability Up to 9 Units

Product Highlights

Flexible power for smart load management

6000 W rated single-phase inverter output

7000 W maximum photovoltaic input capacity

Dual-output design for intelligent smart-load management

User-adjustable charging current and charging voltage

Wide 120–430 VDC MPPT operating voltage range

Maximum photovoltaic input current of 27 A

Built-in Wi-Fi for mobile system monitoring

Reserved BMS communication for battery integration

Pure sine-wave battery-mode output

Supports grid-tie, off-grid and hybrid operating modes

Parallel operation supported for up to nine inverter units

USB, RS232, dry-contact and Wi-Fi communication

Documentation

Datasheet preview

View the official technical documentation for the Infinix Empire V III Twin 6 kW / 7000 W PV inverter.

Preview Download

EMPIRE V III TWIN 6 kW Datasheet Open in new tab
